3V 5V 12V Right Angle Gearbox N20DC Worm Motor with Encoder Dual Output Shaft Micro DC Motor
試供品およびクーポンのための私に連絡しなさい。
ワットサップ:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 電圧 | 3~12 (V) | 出力電力 | 0.1~1.6 （W） |
|---|---|---|---|
| 証明 | ROHS | トルク | 0.0002～0.005(NM) |
| 整流 | ブラシ | 速度（rpm） | 10~600 (rpm) |
| 連続電流 (A) | 0.05~0.5 (A) | ギア比 | 1:42~1:1030 |
製品の説明

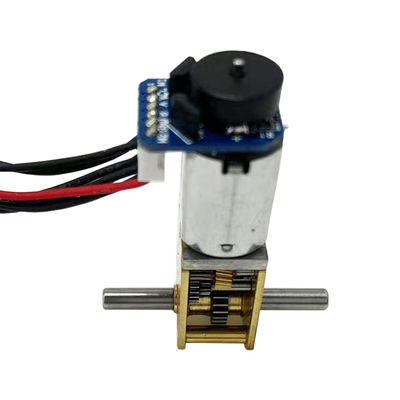

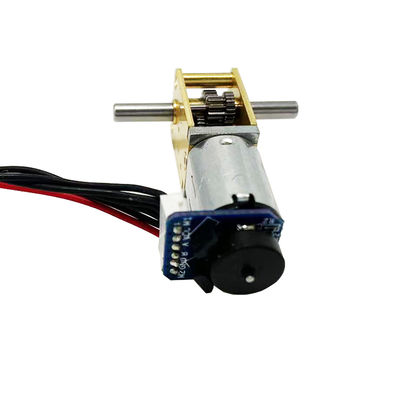

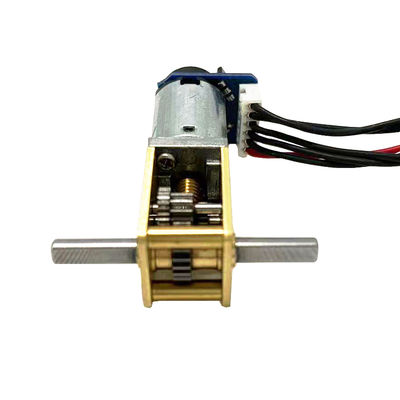

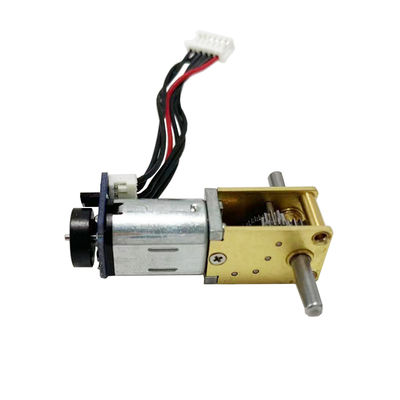

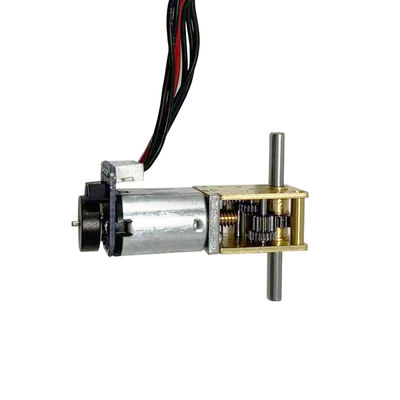

Dual output worm gearbox N20 DC motor with encoder
N20 DC motor is a DC gear motor made of precious metal brushed DC motor and precision metal reducer. The external dimensions are flat circles with an outer diameter of 12 and a flat shape of 10. The length of the motor is 15mm, and the length of the gearbox is 12 * 18 * 10mm. The gearbox has dual output shafts and can also be customized with a single output shaft. A right angle gearbox can save application space, but due to the worm gear reduction process, the efficiency of the motor is lower than that of a spur gear. Optional gear reduction ratio of 1:21-1030
DC motors are widely used in fields such as cameras, copiers, door locks, optical drives, precision instruments, and cameras due to their mature technology, low cost, and simple drive control.
Our gearbox is processed and assembled using imported machine tools, ensuring that the accuracy of each gear is higher than other manufacturers in the same industry. Therefore, the gearbox has smooth transmission, low noise, high efficiency, reliable structure, long service life, and good quality.
Stability.
Our team has over 10 years of experience in the design, development, and production of micro motors, so we can achieve product development and auxiliary design according to customers' special needs!
Customer needs are our efforts, please feel free to contact us at any time!
N20 DC gear motor has beautiful appearance, small size, light weight, easy to install, long life, low noise technology, high energy saving rate, zero momentum, large torque and high precision.
Mechanical Dimension:MM
Technical Features
1:12*18*10mm gearbox with N20 permanent magnet DC motor
2: Meets EU environmental standards. Low energy consumption, low noise
3: Can be equipped with encoder. The number of pulses is 12ppr
4: Reduction ratio: 1:21.1:42.1:118.1:236.1:302.1:603.1:798.1:1030.
5: The product is suitable for: electronic door locks, intelligent switches, steam hair straighteners (water spray straight hair), label stripping agent, smart wear, smart machine 3D printing equipment products, hair curlers, safes, electric screwdrivers, display stands, etc.
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
Product Detail Presentation
China 12mm 3V 5v 12vdc gear motor special motor for electronic lock
Packaging and Shipping
The Micro Stepper Motor is packaged in a durable box with foam padding to ensure the motor is securely protected during the shipping process. The package is then shipped via a reliable courier service and tracking number is provided.
